    21 Pins Outlet Brown Female 8-968975-1 Vehicle Wiring Connectors

    Ask Lasest Price
    Brand Name : ZHONGZHI
    Model Number : 8-968975-1
    Certification : TS16949
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300K pcs per month
    Delivery Time : 5-8 working days
    MOQ : 50pcs/bag
    • Product Details
    • Company Profile

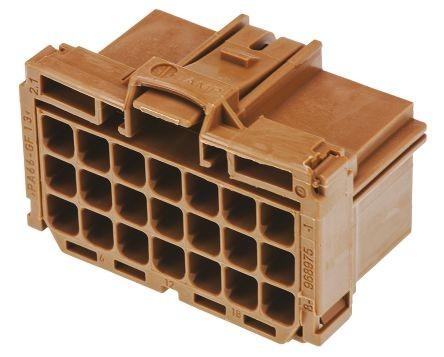

    21 Pins Outlet Brown Female 8-968975-1 Vehicle Wiring Connectors

    21 Pins Outlet Brown Female Wiring Connector Replace 8-968975-1

    Product Overview

    Part Number Pin Number Material Color Applicable Terminal MOQ
    8-968975-1
    21 Pins PBT

    Brown

    1-968849-1
    50

    Product Description

    Housing connectors feature 1-92 cavity arrangements available with a locking latch or lever latch mating mechanism. Housings accepts size 9.5, 6.3/4.8K, 2.8 and 1.5K contacts, carrying up to 100 amps.

    Please review product documents or contact us for the latest agency approval information.

    Please Note: Use the Product Drawing for all design activity.

    Product Type Features

    • Connector Style : Housing for female terminals

    • Connector System : Wire-to-Wire

    • Sealable : No

    • Hybrid Connector : No

    • Primary Locking Feature : On the Terminal

    • Strain Relief : No

    Configuration Features

    • Number of Positions : 21

    • Number of Rows : 3

    Electrical Characteristics

    • Nominal Voltage Architecture (V): 12, 24

    • Operating Voltage (VDC): 28

    Body Features

    • Color : Brown

    • Cable Exit Angle : 180°

    • Body Material : PBT GF

    Contact Features

    • Mating Tab Width : 2.8 mm [ .11 in ]

    Mechanical Attachment

    • Mounting Feature : Without

    • Terminal Position Assurance : Yes

    • Polarized : No

    Housing Features

    • Centerline (Pitch) : 5 mm [ .197 in ]

    Dimensions

    • Height : 24 mm [ .945 in ]

    • Length : 37.5 mm [ 1.476 in ]

    Usage Conditions

    • Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

    • Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

    • Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

    Operation/Application

    • Circuit Application : Signal

    Packaging Features

    • Packaging Method : Carton

    • Packaging Quantity : 900

    Other

    • Connector Position Assurance Capable : No

    • Serviceable : No

    21 Pins Outlet Brown Female 8-968975-1 Vehicle Wiring Connectors

    Company Overview

    Zhejiang Zhongzhi Automobile Electriic Appliances Co., Ltd is a full service manufacturing company dedicated to offering various kinds of electric connectors, terminals, fuse boxes and fuse protectors etc. in automobiles and motorcycles.We produce several series products from which you can choose,if you are interesting in any products,send E-mail of the specifications or item number or picture to us so we can give you our best resolves.

    21 Pins Outlet Brown Female 8-968975-1 Vehicle Wiring Connectors

    FAQ

    Q1: What is your terms of packing?

    A1: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2: What about your delivery time?

    A2: We have a lot of products in stock . We can send the stock products in 3 work days.If without stock , or stock is not enough, we will check the delivery time with you.

    Q3: What is your terms of payment?

    A3:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q4: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

    A4: Our catalogue shows most of our products, but not all. So just let us know what product do you need ,and how many do you want . If we do not have it , we can also design and make a new mould to produce it . For your reference, making a ordinary mould will take about 15-30days.

    Q5: I can’t find the product on your catalogue, can you produce according to the samples?

    A5: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

    Q6: What is your sample policy?

    A6:we can provide free samples. Normally, we provide 5-10pcs free samples for test or quality checking .But you have to pay for the shipping cost . If you need many items, or need more qty for each item,we will charge for the samples.

    Q7: Do you test all your goods before delivery?

    A7:Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?

    A8: 1. We keep good quality and competitive price to ensure our customers benefit ;

    2. We respect every customer as our friend and we sincerely do business and make friends with them,

    no matter where they come from
