Automotive Female Plastic Waterproof Connector Housing 2 Pin

Product Overview

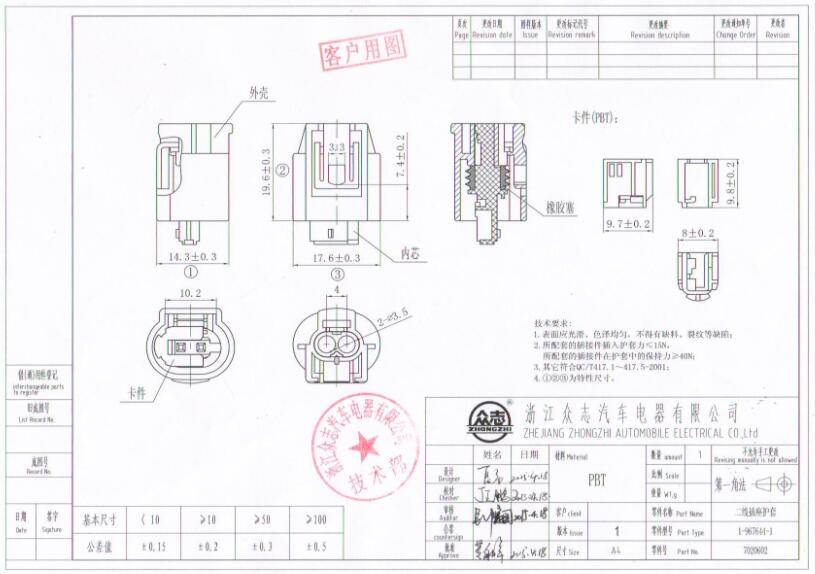

Product Drawing

• Product Type Features

Connector Style : Housing for female terminals

Connector System : Wire-to-Wire

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : On the Terminal

Strain Relief : No

• Configuration Features

Number of Positions : 2

Number of Rows : 1

• Body Features

Color : Black

Cable Exit Angle : 180°

Body Material : PBT GF

• Contact Features

Mating Tab Width : .63 mm [ .025 in ]

• Mechanical Attachment

Mounting Feature : Without

Terminal Position Assurance : Yes

Polarized : Yes

• Housing Features

Centerline (Pitch) : 4 mm [ .157 in ]

• Dimensions

Width : 24.15 mm [ .951 in ]

Height : 15.2 mm [ .598 in ]

Length : 17.4 mm [ .685 in ]

• Usage Conditions

Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Operation/Application

Circuit Application : Signal

• Industry Standards

Degree of Protection : IP69K

UL Flammability Rating : UL 94-HB

• Packaging Features

Packaging Method : Box

• Other

Connector Position Assurance Capable : No

Serviceable : No
