    Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors

    Ask Lasest Price
    Brand Name : ZHONGZHI
    Model Number : 1534094-1 & 1534101-1
    Certification : TS16949
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300K pcs per month
    Delivery Time : 5-8 working days
    MOQ : 400pcs/box
    • Product Details
    • Company Profile

    Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors

    Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors


    Product Overview

    Part NumberPin NumberMaterialColorApplicable TerminalMOQ
    1534094-116 PinsPBTBrown400
    1534101-116 PinsPBTBlack400

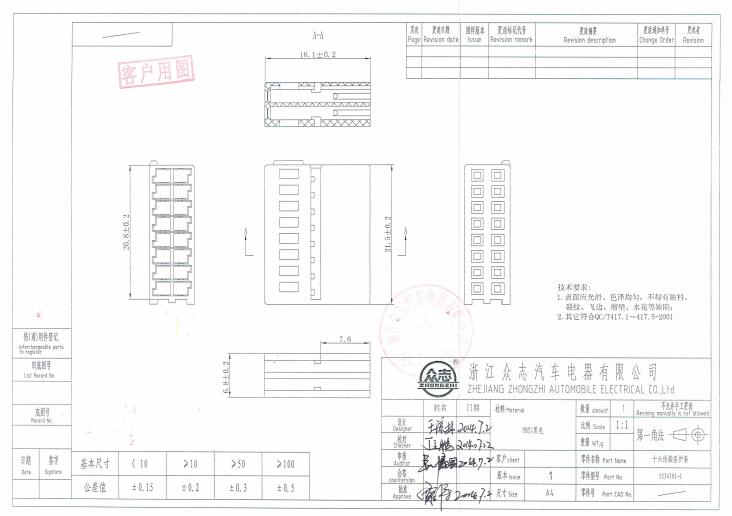

    Product Drawing



    Product Type Features

    • Connector Style : Housing for female terminals

    • Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

    • Sealable : No

    • Hybrid Connector : No

    • Primary Locking Feature : On the Terminal

    • Strain Relief : No

    • Row-to-Row Spacing : 4.24 mm [ .167 in ]

    Configuration Features

    • Number of Positions : 16

    • Number of Rows : 2

    Electrical Characteristics

    • Nominal Voltage Architecture (V): 12

    • Operating Voltage (VDC): 12

    Body Features

    • Color : Black

    • Cable Exit Angle : 180°

    • Body Material : PBT GF

    Contact Features

    • Mating Tab Width : .63 mm [ .025 in ]

    Mechanical Attachment

    • Mounting Feature : Without

    • Terminal Position Assurance : Yes

    • Polarized : Yes

    Dimensions

    • Width : 16.2 mm [ .638 in ]

    • Height : 6.8 mm [ .268 in ]

    Usage Conditions

    • Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]

    Operation/Application

    • Circuit Application : Signal

    Industry Standards

    • UL Flammability Rating : UL 94-HB

    Packaging Features

    • Packaging Method : Box

    • Packaging Quantity : 1000

    Other

    • Connector Position Assurance Capable : No

    • Serviceable  Yes
