    Black 10 Pin Automotive Wire Connectors With Clip Auto Parts Electrical Connector

    Ask Lasest Price
    Brand Name : ZHONGZHI
    Model Number : 1534170-1 & 1534125-1
    Certification : TS16949
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300K pcs per month
    Delivery Time : 5-8 working days
    MOQ : 400pcs/box
    • Product Details
    • Company Profile

    Black 10 Pin Automotive Wire Connectors With Clip Auto Parts Electrical Connector

    Automotive Female Plastic Wire Connectior Housing 10 Pins With Clip


    Product Overview

    Part NumberPin NumberMaterialColorApplicable TerminalMOQ
    1534170-110 PinsPBTBlack400
    1534125-110 PinsPBTBlack400

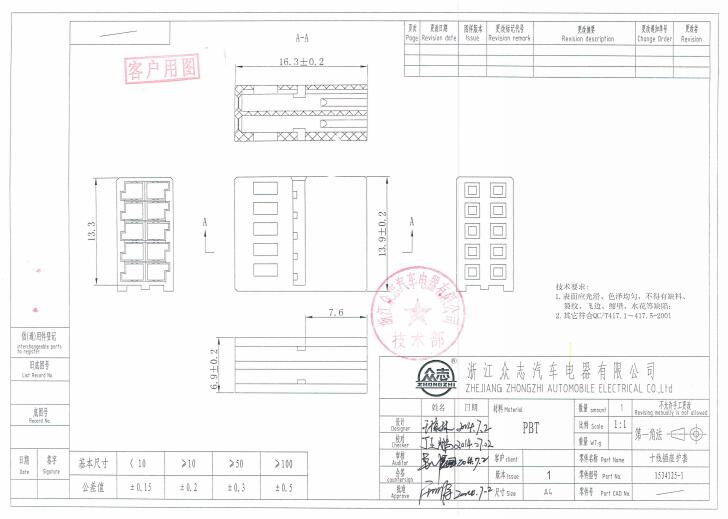

    Product Drawing


    • Product Type Features

    Connector Style : Housing for female terminals

    Connector System : Wire-to-Board, Wire-to-Device

    Sealable : Yes

    Hybrid Connector : No

    Primary Locking Feature : On the Terminal

    Strain Relief : No

    Row-to-Row Spacing : 4.24 mm [ .167 in ]


    • Configuration Features

    Number of Positions : 10

    Number of Rows : 2


    • Electrical Characteristics

    Nominal Voltage Architecture (V): 12

    Operating Voltage (VDC): 12


    • Body Features

    Color : Black

    Cable Exit Angle : 180°

    Body Material : PBT GF


    • Contact Features

    Mating Tab Width : .63 mm [ .025 in ]


    • Mechanical Attachment

    Mounting Feature : Without

    Terminal Position Assurance : Yes

    Polarized : Yes


    • Housing Features

    Centerline (Pitch) : 2.5 mm [ .098 in ]


    • Dimensions

    Width : 16.5 mm [ .65 in ]

    Height : 6.8 mm [ .268 in ]

    Length : 14.1 mm [ .555 in ]


    • Usage Conditions

    Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]


    • Operation/Application

    Circuit Application : Signal


    • Industry Standards

    UL Flammability Rating : UL 94-HB


    • Packaging Features

    Packaging Method : Loose Piece

    Packaging Quantity : 7500

    • Other

    Connector Position Assurance Capable : No

    Serviceable : Yes


    FAQ

    1. Q: Are you a factory or trading company?

    A: We are a factory.


    2. Q: How can I get some samples?

    A: We are honored to offer you samples if you find the products you are interested

    in or send us your drawing.


    3. Q: Can you make it according to my drawing?

    A: Yes,we can.We will make it according to your request.


    4. Q: Samll order can be accepted?

    A: Yes,we can accept it,don't worry about it.


    5. Q: How can i get a quotation?

    A: Please send your inquiry to our email,and we need to some information about

    the project,such as dimensions,material ,quantity etc.


    6. Q: Can i visit your factory?

    A: Yes,welcome to our factory.


    7. Q: How does your factory do regarding quality control?

    A: Quality is priority.Our workers always pay great attention to quality controlling from the beginning

    to the end. All the moulds,the QC measure with three-D measuring equipments regularly.


    8. Q: If I place an order from your factory,when can i get the products?

    A: Usually our lead time is 6-10 work days,but also need to depend on the exact quantity.
